As a long-standing partner providing telemetry systems to our international clients, we develop and manufacture high-performance testing equipment for the most demanding technical specifications.
A wide variety of applications can be covered flexibly with our modular product range. By continually developing, modularizing and miniaturizing telemetry components, we have increased their use in a number of ways to build a broad foundation in regards to providing specialty customized measurement systems.
A wide variety of applications can be covered flexibly with our modular product range. By continually developing, modularizing and miniaturizing telemetry components, we have increased their use in a number of ways to build a broad foundation in regards to providing specialty customized measurement systems.

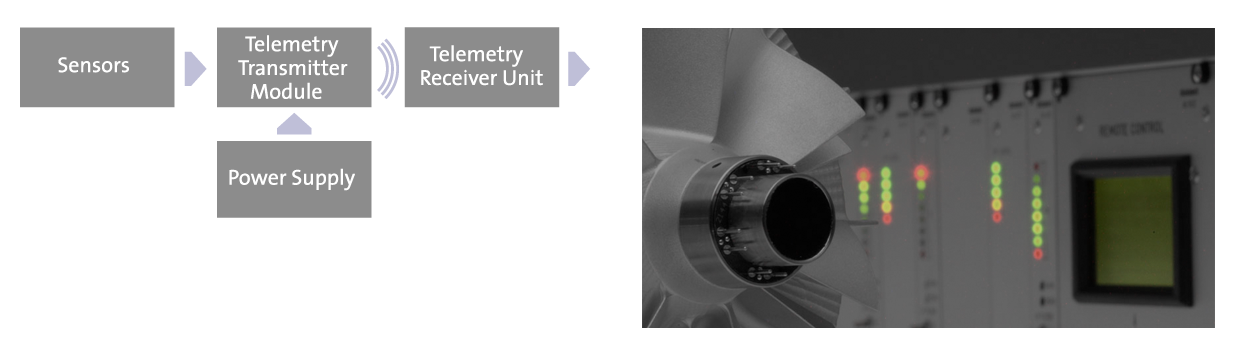

datatel telemetry systems are the result of continuous product development geared to the user. We use field-tested, robust analogue and digital technology. We utilize special transmission techniques to achieve contactless and reliable transmission of high bandwidth measured data from strain gages, thermocouples, accelerometers etc. under extreme operating conditions.
Product key features at a glance:
- Contactless transmission of data and power
- Robust, field-tested and reliable technology
- Turnkey system approach to ensure convenient commissioning and handling
- Single and multi-channel technology, several hundred measurement channels possible
- Direct connection of sensors (e.g. strain gages, thermocouples, RTD, pressure sensors, ICP and piezoelectric sensors etc.)
- Can be used in extreme ambient conditions (operating temperature range – 40 to + 125°C, g-load up to 150,000g, oil and moisture resistant)
- High signal bandwidth per channel, up to 96kHz (-3dB)
- Synchronous data transmission
- High level of measurement accuracy and signal quality
- Remotely controlled telemetry transmitters with integrated diagnostic functions
- Miniaturized telemetry transmitter modules
- Rotating electronic components enclosed in robust metal housings, resistant to ambient influences
- Telemetry receivers in modular 19” technology or compact types for mobile applications
- Standardized analog or digital signal outputs
- External data acquisition systems can be connected directly
- Dual power supply concept, inductive power supply or alternatively by battery
- Significant relative motion option between the rotor and stator without impairing the measured data
